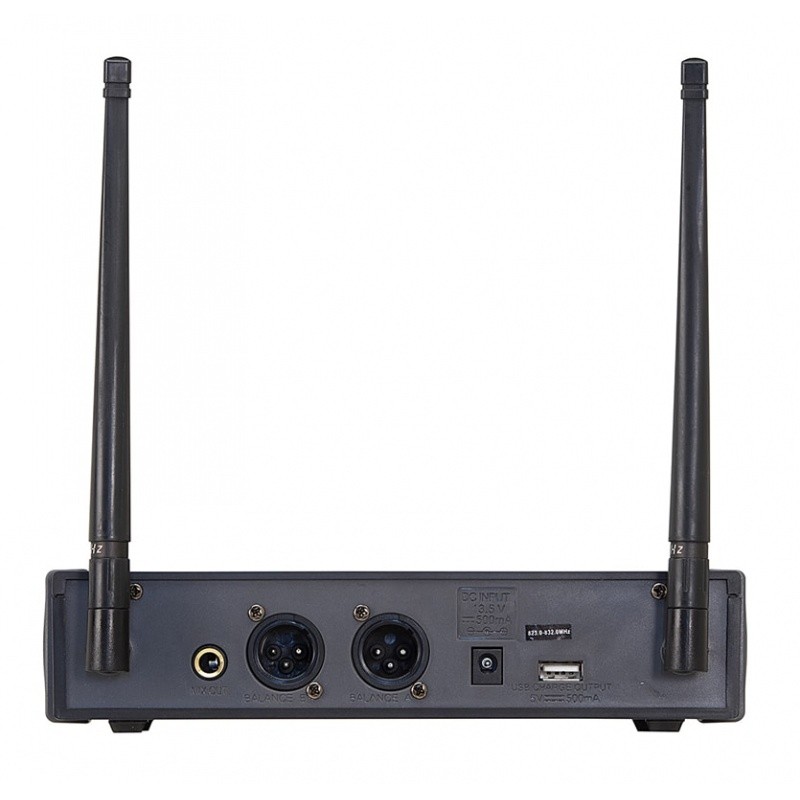

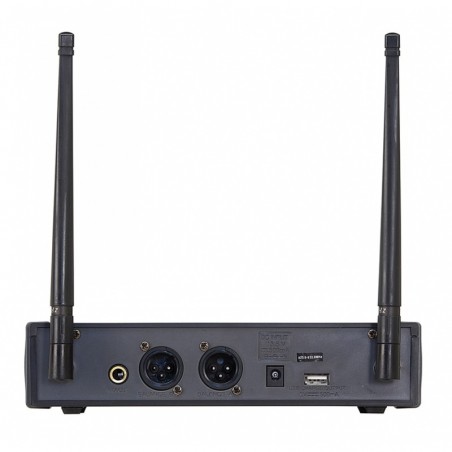

The unique 16bit digital ID pilot technology avoids interferences even on same frequency, and allows continuous exchange of data between transmitters and receiver, such as battery level, transmission power, squelch operation, etc. The system is equipped with automatic frequency scanning and frequency spectrum display, which allow the user to select the less disturbed frequencies in every environment it operates. It features 90 frequencies for each transmitter, divided into 10 groups, each of which contains 9 channels. The user interface is very simple and intuitive, thanks to the TFT color display on the receiver and the simplicity of its setup menus. The handheld transmitter and the bodypack (in case of WF-D290HP), however, are equipped with LCD display with auto-off function, to save battery. The handheld microphone is also equipped with rechargeable lithium battery that can be recharged via the USB port on the back of the receiver. Finally, there are two optional kit for rack mounting of 1 or 2 receivers, respectively, on 1 or 2 standard 19” rack units.

    UHF E-Band operation (823-832 MHz)
    Digital audio transmission technology
    Unique digital 16-bit ID pilot technology
    Transmitter AF-level, Audio-level and Battery-Low monitoring on the Receiver
    Double antenna diversity technology
    No crosstalk disturbance even on same frequency
    Ultra-short audio latency
    Sampling Frequency
    30Hz-20kHz frequency response

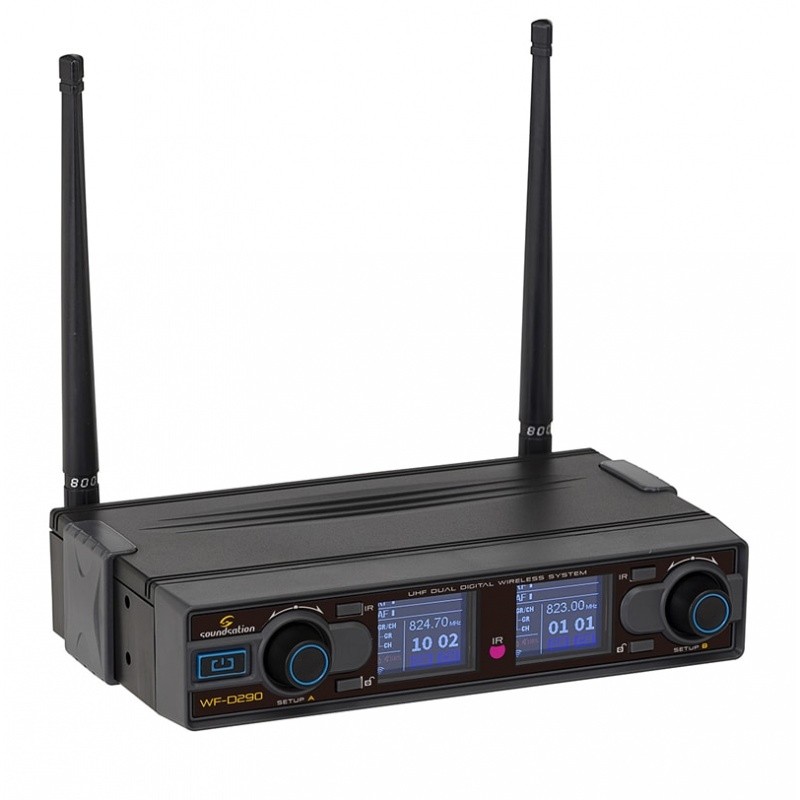

    Colorful TFT display and menu settings on receiver
    Auto frequency scanning and spectrum display
    50m Ideal Distance (without obstacles)
    Infrared Tx-Rx synchronization system for quick system setting

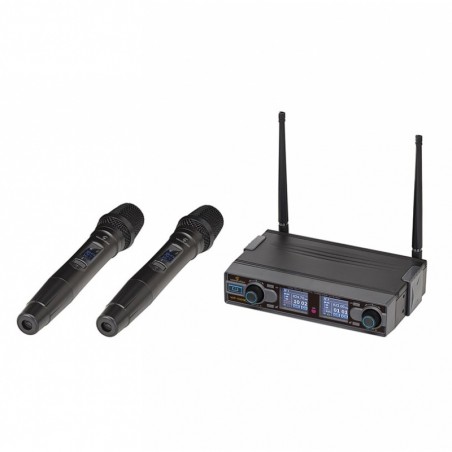

    Professional Handheld Microphone with Professional Dynamic Cardioid Capsule and rechargeable Lithium Battery
    Rack-Mount Kit for 1 or 2 receiver units to 1x or 2x 19" rack unit (optional)
